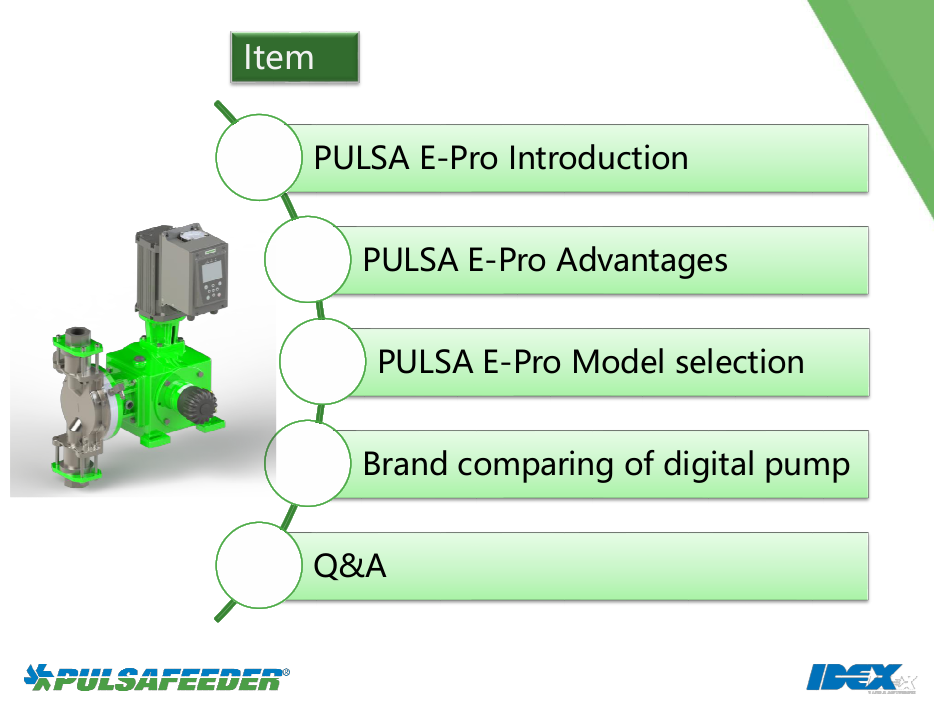

Pulsa® E-Pro Introduction
- Why? With industrial 4.0 and Smart water requirement, digitalization become an important industrial trend in the future. Digital pump market is at an early stage, it will achieve $27Mn in 2030 at a 15% CAGR (2021-2030) in China.
- What? Local team has launched GLM+SPC1.1 as a good start since 2021. But facing challenges of some unmet needs, New Pulsa® E-Pro Series (GLM+SPC2.0) aims to upgrade existing solution in targeted segments (Muni-water & Li-battery), with Multi-functions control, User Friendly Interface & Better control method(4-20ma/0-10V/RS485) .
- When? New Pulsa® E-Pro Series Commercial Launched at end of Jun’23. Planning the 1st shipment of batch order by end of Aug’23.
- How? Focusing on wide range flowrate (~3600lph) and good performance of GLM product, along with value based Pricing & loyalty channel partners & targeted market promotion.
- Where? Expand market share in targeted market (incl. Muni-water & Li-battery) in a quick way.
1 PULSA E-Pro Digitalization
- Customer designed BLDC (brushless direct current) motor
- High accuracy of 0.1%
- Minimum motor speed is 15 RPM
- Adjust motor speed at a minimum change rate of 0.1%
- Offer many control options, local or remote(4-20ma/0-10V/RS485)
- Large color screen at 3.5 inch
- Display many operating data of this motor(instant flow rate, accumulate flow, motor operating frequency, stroke frequency, control model, operating time, warning messages)
- Realize automatic dosing after inputting flow
- Remind of maintenance items
- Store 2048 work logs and 200 failure logs
- Record detailed warning messages
- Provide reference for service stuff
2 PULSA E-Pro High-efficiency
- High-efficiency(>90%)
- Combine with 0.1% accuracy, realize stable and accurate dosing with lower cost
- ROI is 3 years, invest this smart motor VS traditional motor + frequency changer + control box
3 PULSA E-Pro Friendly man-machine interaction
- Display all critical data on the interface (Power, run, Error, instant flow rate, accumulate flow)
- The menu level design is simple and easy to understand(only have 2 levels)
- Realize friendly operation for even fresh man
Switch language setting no matter the motor is on or off
Change unit to adapt for different users and different countries
- Guided calibration process, convenient to operate
- Firstly, input duration time & stoke length percentage
- Secondly, wait for the motor to speed up to 100% rotation speed
- Thirdly, record the flow change and input the value to the controller, complete calibration
- Three user-define extended input signals and three extended output signals
- Integrate diaphragm leak detection signal, liquid level warning signal, other critical signals users want to focus on

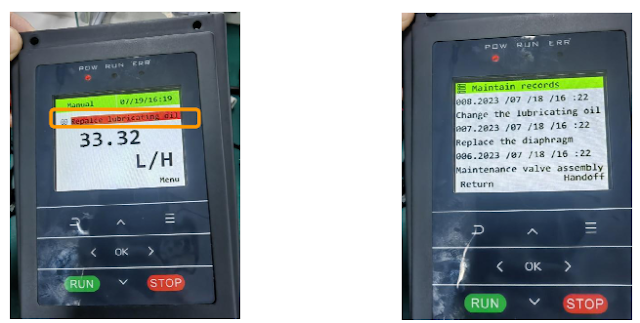

- Jump out of the maintenance reminders to users
- Record and store all unusual waring information for service engineer to check and analyze the cause of different failures
4 PULSA E-Pro Robust & Reliable
- Fully covered by robust metal jacket,
- Reach IP55 protection level
- Waterproof screen
- Ensure operation accuracy
- Avoid false contact caused by splashing liquid
5 GLM Mechanical Pump-80 Products
- Stable and reliable performance
- Applicable for many tough applications
- Long life, low noise, leakage free
E-Pro Model selection
- Totally 10 types, EP1-EPX
- Model name is defined by 11 codes, 7 basic codes + 4 extending codes
- Flow + Pressure-> 3rd position, details -> the rest position
E-Pro pump configuration list: EP7ABDA-XXXX: DM7 316SS BSPT
- Accurate footprint drawings of E-Pro
- Critical for end user to design system
